Chemogenetics

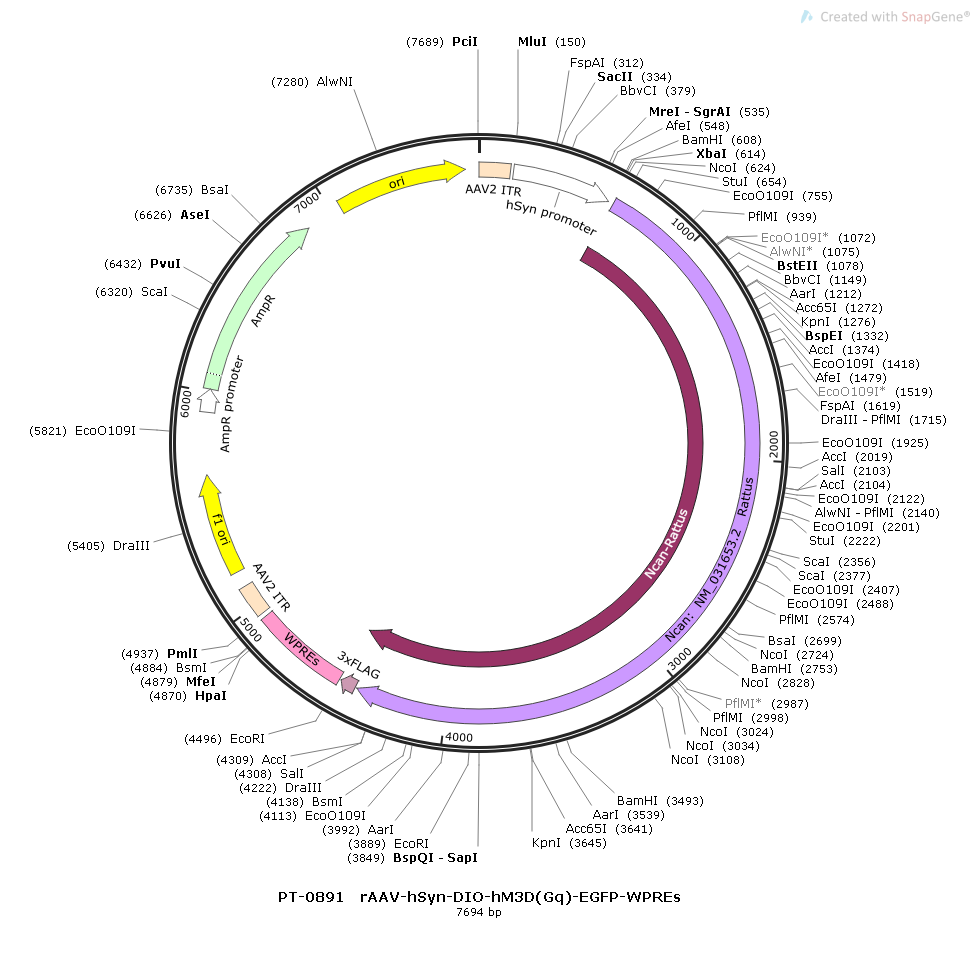

rAAV-hSyn-DIO-hM3D(Gq)-EGFP-WPREs
The mature neuron-specific promoter hSyn regulates the expression of Cre-dependent chemical genetic activation elements. hM3D(Gq)-EGFP is expressed in the presence of Cre, but hM3D(Gq)-EGFP is not expressed in the absence of Cre. hM3D(Gq) is another modified human-derived G protein-coupled receptor. After activation with clozapine N-oxide (CNO), it activates the Gq signaling pathway to inhibit cells.
AAV1, AAV2, AAV5, AAV6, AAV8, AAV9, rh10, DJ, B10, PHP.eB, PHP.S, MaCPNS1/2, retro, anc80l65, AAV3, AAV4, AAV11, AAV13, BR1, MG1.AAV2, olig001, 9/retro, AAV2/PHP.S, AAV2/PHP.eB, AAV2/2Retro Plus, AAV2/9, AAV2/8, AAV2/2, Please consult for more serotypes
hM3D(Gq)
hSyn Neuron-specific Promoter hSYN(0.5k) hSyn-DIO
Store at -80°C
Delivery Information
Usually Ships in 7 Business Days；
Product Details
Promoter Details
hSyn, human synapsin promoter, mature neuron-specific promoter, 448bp.
The hSyn promoter, also known as the hSyn1 promoter, is cloned from the promoter region of human synapsin protein 1 (Synapsin1). It is about 0.5kb in length and is specifically expressed in neurons.
Functional Gene Details
hM3D(Gq): It is an artificial receptor modified from the human muscarinic acetylcholine receptor M3 that only responds to CNO and is no longer activated by acetylcholine. In some neurons, after CNO binds hM3D(Gq), it activates the Gq protein-coupled phosphatase PLCβ, causing PIP2 (phosphatidylinositol(4,5)bisphosphate, phosphatidylinositol diphosphate) to be degraded, thereby opening the KCNQ outward potassium ion channel closed by PIP2, so that the cell membrane is depolarized, forming an action potential, that is, activating neurons. In neurons that do not express KCNQ or Gq, the function of hM3D(Gq) may be different.
Fluorescent Tag
EGFP
green fluorescent green
Fluorescent Protein Details
EGFP: Green fluorescent protein, excitation wavelength 488nm, emission wavelength 507nm.
Virus Type
adeno-associated virus
Adeno-associated virus vector Adeno-associated Virus
Application
Chemical genetics technology/DREADDS (designer receptors exclusively activated by designer drugs) technology can be used to regulate the activities of neurons or other types of cells. For example, by injecting the virus into a specific brain area of a mouse, and after hM3D(Gq) is expressed in the mouse, CNO (clozapine-N-oxide, N-oxide clozapine) is given via intraperitoneal injection or diet, which can activate neurons over a long period of time (on the order of hours). DREADDs technology can be used to explore neurons and neural circuits related to memory formation, food intake regulation and arousal.
Regulatory Element Details
DIO: Double-floxed inverse Orientation, is an element that cooperates with Cre recombinase to control the expression of the target gene. If there is no Cre recombinase, the target gene will not be expressed, but in the presence of Cre, the target gene can be expressed normally.
Notes
1. Short-term storage at 4°C; long-term storage at -80°C
2. It can be stored at -80°C for more than 6 months. Each time it is frozen and thawed, the titer will be reduced by 10%, and repeated freezing and thawing should be avoided; if the virus is stored for more than 6 months, it is recommended to re-measure the virus titer before use
3. According to the experimental needs, the virus can be appropriately diluted and divided into the volume required for each experiment.
Expression and Regulation Mode
Cre-dependent
specific expression
References and DOI
Single-dose methamphetamine administration impairs ORM retrieval in mice via excessive DA-mediated inhibition of PrLGlu activity
Synapsin 2a/Synaptogyrin-3 interaction regulates fear extinction
in mice
