Optogenetics

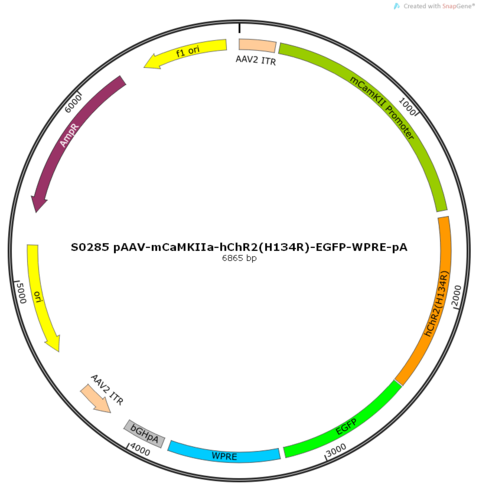

AAV2/8-mCaMKIIa-hChR2(H134R)-EGFP-ER2-WPRE-pA
AAV2/8, AAV2/5, AAV2/2, AAV2/9
hChR2(H134R)
mCaMKIIa mCaMKIIa(1.3k)
Store at -80°C
Delivery Information
Usually Ships in 7 Business Days；
Product Details
Promoter Details
CaMKIIa, pyramidal neuron/excitatory neuron promoter, 1293bp.
The mCaMKIIa promoter, cloned from the promoter region of mouse calmodulin-dependent protein kinase IIa, is 1.3kb in length and is specifically expressed in excitatory neuronal cells.
Functional Gene Details
hChR2 (H134R): It is the most common form of ChR2. h refers to the coding sequence of the gene that has been optimized for the human codon table. H134R refers to the mutation of histidine at position 134 to arginine. This mutation inhibits the binding of H+ by ChR2 and increases the passage ability of Na+, thereby increasing the overall conductivity of the molecule and thereby increasing the inward current excited by light. Generally, blue light around 470nm is used for excitation.
Fluorescent Tag
green fluorescent green
Virus Type
Adeno-associated virus vector Adeno-associated Virus
Expression and Regulation Mode
specific expression
