Controls

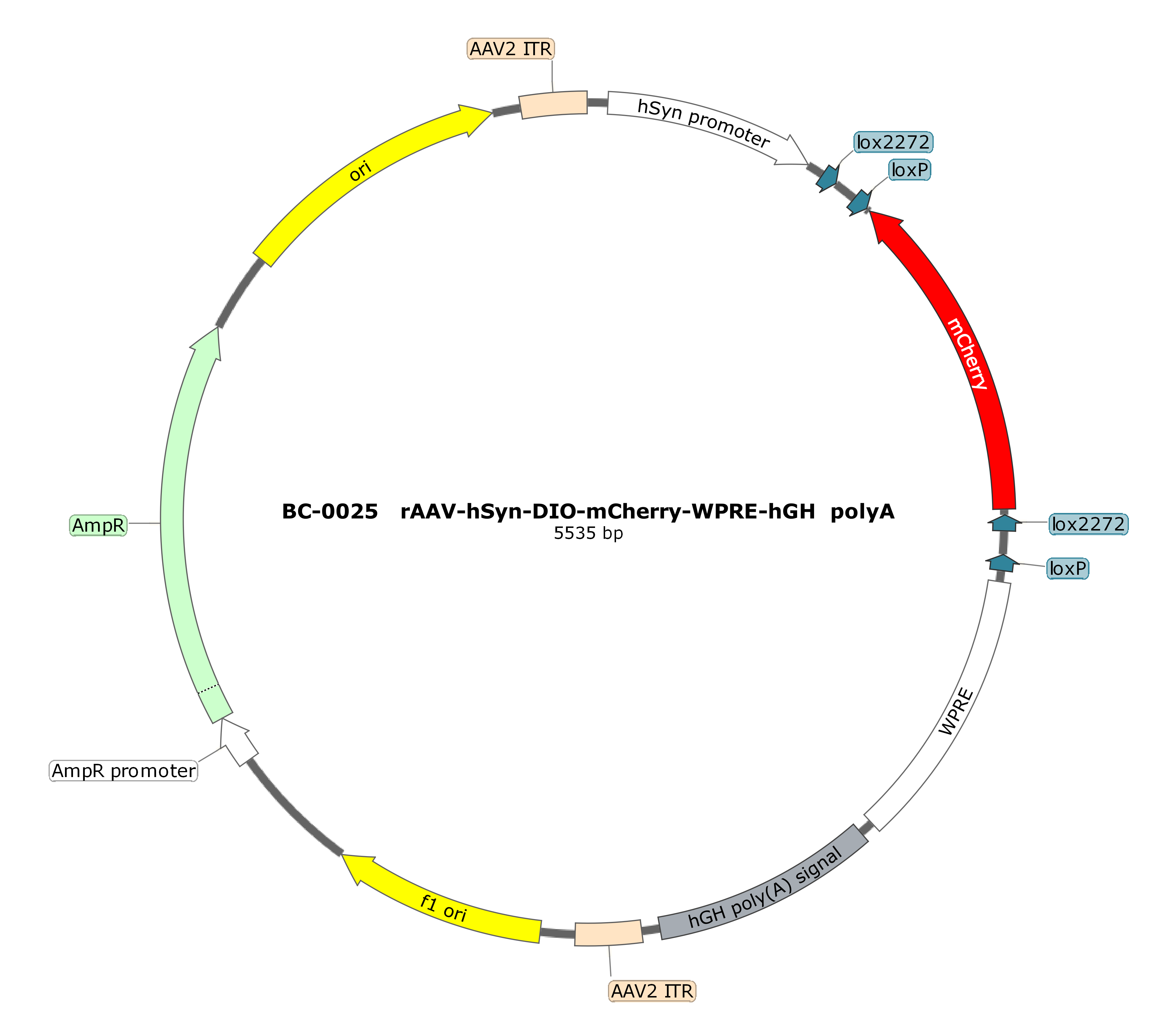

rAAV-hSyn-DIO-mCherry-WPRE-hGH polyA
——
AAV1, AAV2, AAV3, AAV4, AAV5, AAV6, AAV8, AAV9, retro, AAV11, AAV13, PHP.eB, BR1, B10, MG1.AAV2, olig001, DJ, php.s, 9/retro, AAV2/2, AAV2/PHP.eB, AAV2/8, AAV2/9, AAV2/2Retro Plus, AAV2/5, AAV2/1
Cre dependence —— mCherry
hSyn Neuron-specific Promoter hSYN(0.5k) hSyn-DIO
Store at -80°C
Delivery Information
Usually Ships in 7 Business Days；
Product Details
Promoter Details
hSyn, human synapsin promoter, mature neuron-specific promoter, 448bp.
The hSyn promoter, also known as the hSyn1 promoter, is cloned from the promoter region of human synapsin protein 1 (Synapsin1). It is about 0.5kb in length and is specifically expressed in neurons.
Functional Gene Details
Cre: The most commonly used site-specific DNA recombinase, cloned from bacteriophage P1, consists of 343 amino acids. Cre's action site is a 34bp LoxP sequence with a characteristic structure of ATAACTTCGTATA-NNNTANNN-TATACGAAGTTAT. The 13 reverse complementary bases on both sides are Cre's recognition sequences. The middle 8 bases are where recombination occurs. Recombination can only occur if the sequences are the same. N represents a variable base, and different base selections create different LoxP sites. Tissue-specific promoters are used to specifically control the expression of Cre in specific tissues to achieve knockout or transformation of target genes in specific tissue cells. Cre specifically recognizes LoxP sites. If two loxP sites are located on the same DNA strand and in the same direction, Cre recombinase mediates sequence excision between loxPs; if two loxP sites are located on the same DNA strand and in opposite directions, Cre recombinase mediates sequence inversion between loxPs; if two loxP sites are located on different DNA strands or chromosomes, Cre recombinase mediates exchange of two DNA strands or chromosomal translocation.
hChR2(C128S/D156A/T159C): The excitation wavelength is 470nm, no need to implant optical fiber, and light stimulation is applied from outside the skull.
Fluorescent Tag
mCherry
red fluorescent red
Fluorescent Protein Details
mCherry: red fluorescent protein, excitation wavelength 587nm, emission wavelength 610nm.
dsRed, red fluorescent protein, excitation wavelength 557nm, emission wavelength 579nm.
Virus Type
Adeno-associated virus vector Adeno-associated Virus
Expression and Regulation Mode
Cre-dependent
specific expression
Cre-On
References and DOI
Cerebellar Purkinje cell firing promotes conscious recovery from anesthesia state through coordinating neuronal communications with motor cortex
Restoring the Function of Thalamocortical Circuit Through Correcting Thalamic Kv3.2 Channelopathy Normalizes Fear Extinction Impairments in a PTSD Mouse Model
Dual electrical stimulation at spinal muscular interface reconstructs spinal sensorimotor circuits after spinal cord injury
