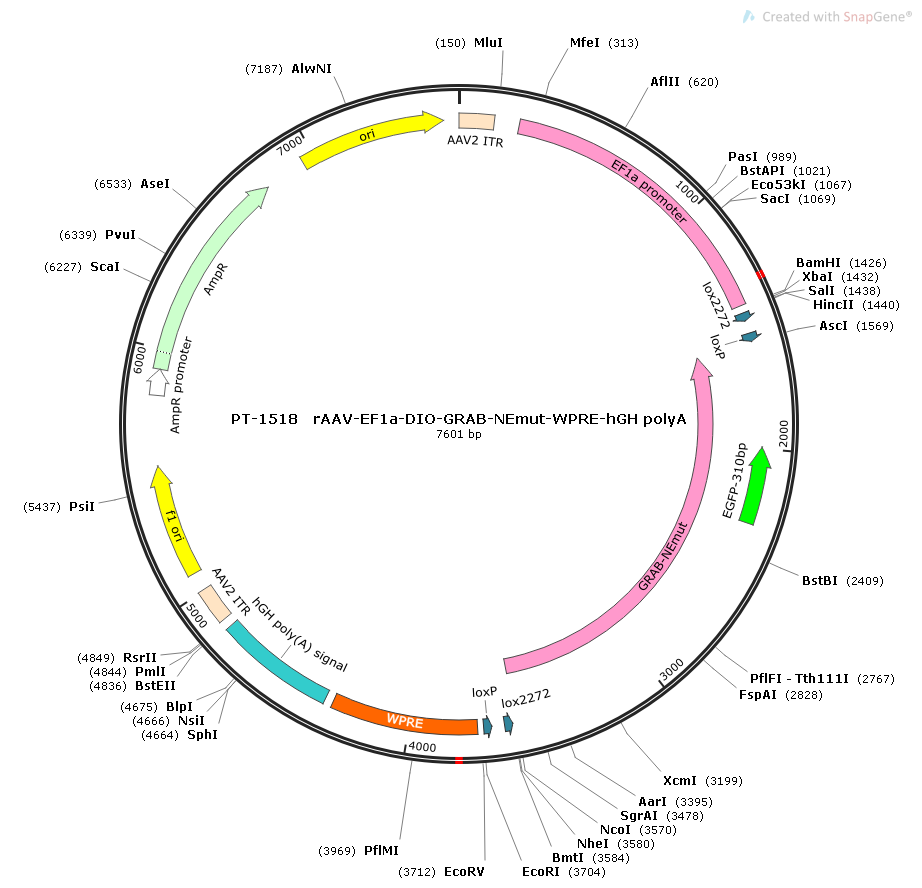

rAAV-EF1α-DIO-GRAB-NEmut-WPRE-hGH polyA

Promoter Details

Ef1α, a strong promoter, human targeted elongation factor 1α (EF1A) gene, can be stably expressed in most types of cells, especially cells where the CMV promoter is silenced, such as stem cells, 1178bp.

Functional Gene Details

ChRmine: The excitation wavelength is 635nm, which can provide larger photocurrent and can also generate wave peaks under low-frequency stimulation, so it can be used for manipulations that require lower heat or deeper brain areas. ChRmine can achieve transcranial light activation of specific neural circuits, including midbrain and brainstem structures, to a staggering depth of 7mm, with millisecond precision, and this behavioral modulation does not require surgical intervention. At the same time, the brain areas manipulated by deep transcranial optogenetics were not damaged by tissue heating or other phototoxic effects.

Fluorescent Tag

NEmut

-

Fluorescent Protein Details

mCitrine: yellow fluorescent protein, excitation wavelength 516nm, emission wavelength 529nm. Tag protein: HA: The HA tag protein sequence is YPYDVPDYA, which is derived from the hemagglutinin surface epitope of influenza virus. It has 9 amino acids and has little impact on the spatial structure of the foreign target protein. It is easy to construct a tag protein fused to the N-terminus or C-terminus. Easy to detect with Anti-HA antibody detection and ELISA. IRES: internal ribosome entry site, the Chinese name is the internal ribosome entry sequence, which can be inserted downstream of the CDS region on the mRNA to mediate another CDS region that follows it, thus enabling the expression of two proteins on one mRNA.

Expression and Regulation Mode

Cre-dependent
