Optogenetics

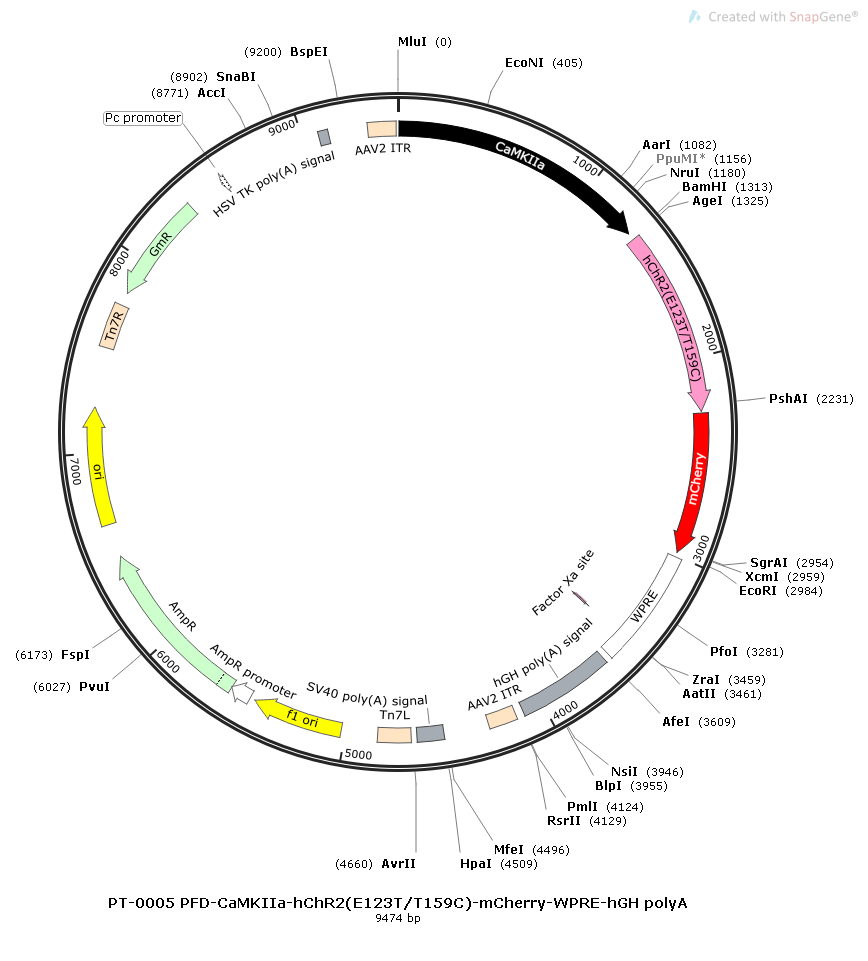

rAAV-CaMKIIa-hChR2(E123T/T159C)-mCherry-WPRE-hGH polyA
Excitatory neuron-specific promoter CaMKIIa regulates the expression of light-activated elements Channelrhodopsins are light-gated ion channels that exist naturally in microalgae. hChR2 is a humanized version of ChR2 for mammalian expression. It is maximally excited by 470 nm light. hCHR2 (E123T/T159C) is a mutated form of ChR2, also known as ChETA (TC), suitable for high-frequency activation with an activation wavelength of 470 nm.
AAV1, AAV2, AAV5, AAV6, AAV8, AAV9, rh10, DJ, B10, PHP.eB, PHP.S, MaCPNS1/2, retro, anc80l65, AAV3, AAV4, AAV11, AAV13, BR1, MG1.AAV2, olig001, 9/retro, AAV2/9, Please consult for more serotypes
hChR2(E123T/T159C) hChR2(E123T / T159C)
CaMKIIa Neuron-specific Promoter mCaMKIIa(1.3k)
Store at -80°C
Delivery Information
Usually Ships in 7 Business Days；
Product Details
Promoter Details
CaMKIIa, pyramidal neuron/excitatory neuron promoter, 1293bp.
Functional Gene Details
hChR2(E123T/T159C): It is called one of the upgraded versions of ChETA in Karl Deisseroth's laboratory. By introducing the point mutation of T159C, the shortcoming of ChETA's weak inward current has been significantly improved. The inward current in the plateau period is close to hChR2(H134R), while also maintaining the rapid closing characteristics of ChETA molecules, giving the channel excellent properties. Based on the E123T mutation, T159C has a significantly better effect on increasing inward current than H134R. The excitation light wavelength is 473nm, suitable for high-frequency light activation.
Fluorescent Tag
mCherry
EGFP
red fluorescent red
Fluorescent Protein Details
mCherry: red fluorescent protein, excitation wavelength 587nm, emission wavelength 610nm.
EGFP: Green fluorescent protein, excitation wavelength 488nm, emission wavelength 507nm.
dsRed, red fluorescent protein, excitation wavelength 557nm, emission wavelength 579nm.
Virus Type
adeno-associated virus
Adeno-associated virus vector Adeno-associated Virus
Application
Expressing light-sensitive ion channel proteins, such as ChR2, ChrimsonR, etc., in neurons through rAAV viral vectors can specifically excite neurons and explore the effects of light stimulation on neurons, neural circuits and animal behavior.
Notes
1. Short-term storage at 4°C; long-term storage at -80°C
2. It can be stored at -80°C for more than 6 months. Each time it is frozen and thawed, the titer will be reduced by 10%, and repeated freezing and thawing should be avoided; if the virus is stored for more than 6 months, it is recommended to re-measure the virus titer before use
3. According to the experimental needs, the virus can be appropriately diluted and divided into the volume required for each experiment.
Expression and Regulation Mode
Others
specific expression
