Optogenetics

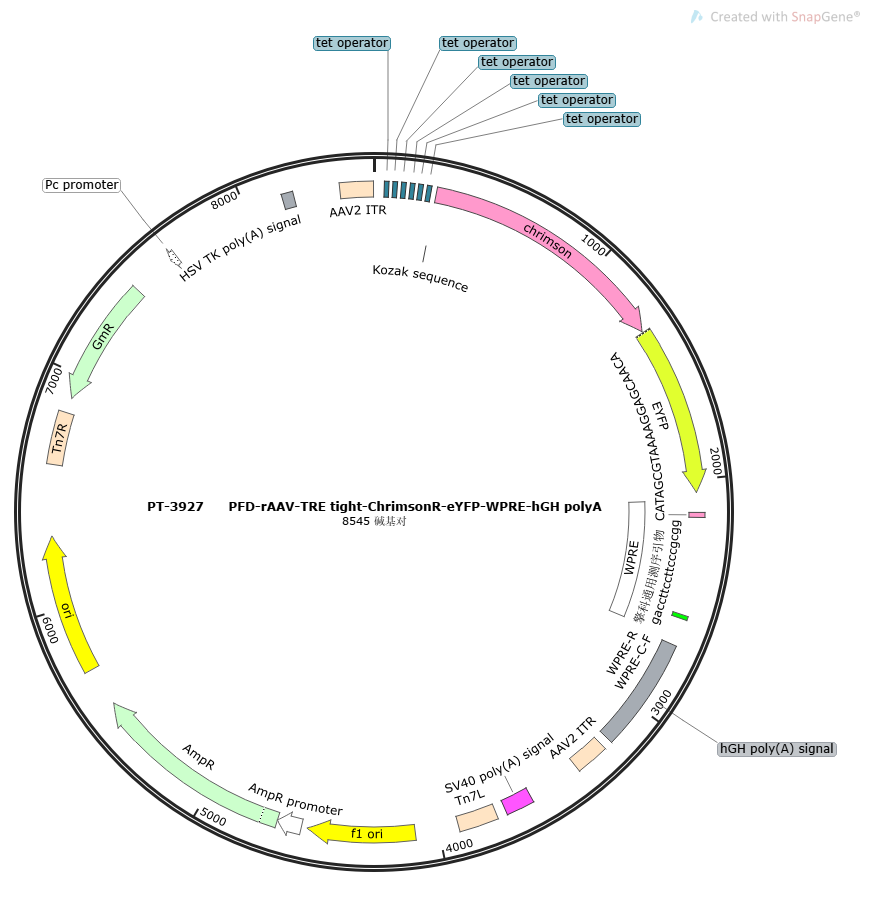

PFD-rAAV-TRE tight-ChrimsonR-EYFP-WPRE-hGH polyA
When paired with viruses or mice expressing tTA, only when there is no dox and cre light-activated elements are expressed; when paired with viruses or mice expressing rtTA, only when dox and cre are present at the same time, the light-activated elements are expressed.
AAV1, AAV2, AAV5, AAV6, AAV8, AAV9, rh10, DJ, B10, PHP.eB, PHP.S, MaCPNS1/2, retro, anc80l65, Please consult for more serotypes
ChrimsonR
TRE tight
Store at -80°C
Delivery Information
Usually Ships in 7 Business Days；
Product Details
Promoter Details
TRE tight, tetracycline-induced expression, 315bp.
Functional Gene Details
ChrimsonR: A new type of light-controlled ion channel that can respond to red light around 600nm was discovered through high-throughput sequencing in the Boyden laboratory. A point mutation of K176R was made on the basis of Chrimson (CnChR1), which speeds up the channel closing speed, making it possible to effectively respond to light signals at least 20Hz and below. When used with Chronos, it is possible to control two different neurons with two fluorophores. The excitation light wavelength is 590nm.
Fluorescent Tag
EYFP
Fluorescent Protein Details
EYFP: Yellow fluorescent protein, excitation wavelength 513nm, emission wavelength 527nm.
Virus Type
adeno-associated virus
Application
Expressing light-sensitive ion channel proteins, such as ChR2, ChrimsonR, etc., in neurons through rAAV viral vectors can specifically excite neurons and explore the effects of light stimulation on neurons, neural circuits and animal behavior.
Notes
1. Short-term storage at 4°C; long-term storage at -80°C
2. It can be stored at -80°C for more than 6 months. Each time it is frozen and thawed, the titer will be reduced by 10%, and repeated freezing and thawing should be avoided; if the virus is stored for more than 6 months, it is recommended to re-measure the virus titer before use
3. According to the experimental needs, the virus can be appropriately diluted and divided into the volume required for each experiment.
